Portable Gigabit Copper TAP

Portable Gigabit Copper TAP

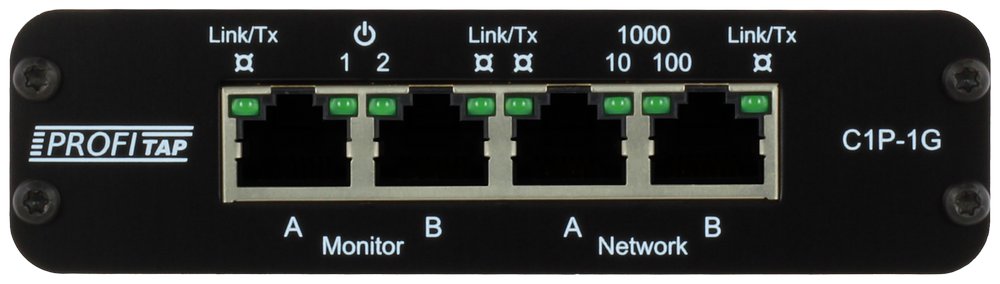

Profitap C1P-1G is a non-intrusive, portable Gigabit Ethernet TAP for in-line monitoring of 10/100/1000 Mbps networks. C1P-1G provides complete, fail-safe access to the in-line traffic with no packet loss. C1P-1G also features PoE passthrough, as well as No Break — a feature which ensures a very short recovery time of the network link, thanks to the use of high-speed relays, and allowing network traffic to pass through the TAP even when power is disrupted. The integrated Data Diode feature protects the network from any injection of data from the monitor ports.

Technical Specifications

Network Link
1
Monitor Output
1
Speed
10/100/1000 Mbps
Dimensions
113 x 128 x 30 mm
4.4 x 5 x 1.2 in
Power
12 VDC
AC Adapter
100–240 VAC
  • Non-intrusive in-line network access
  • Permanent network link guaranteed
  • Fail-safe in-line design ensures uninterrupted network operation in case of power loss
  • Monitoring of all 7 OSI layers
  • No packet loss, no point of failure
  • Data Diode function prevents any injection of data from the monitoring ports back into the network
  • Fully 802.3af & VoIP compliant, PoE passthrough
  • Low power consumption
  • Supports link failure propagation (LFP)
  • Redundant powering
Power Supply
Power Supply
Ordering Reference: APWR2
